PTC Thermistor MZ6 Sensor for Motor Protection
PTC

PTC Thermistor MZ6 Sensor for Motor Protection

Temperature-sensitive PTC elements with rising resistance at higher temperatures. Designed for series use with single or multiple motor protectors.

May 27, 2024

Request quote Back to catalogue

Technical datasheet

Features, electrical specifications, applications and dimensions for this sensor.

Product features

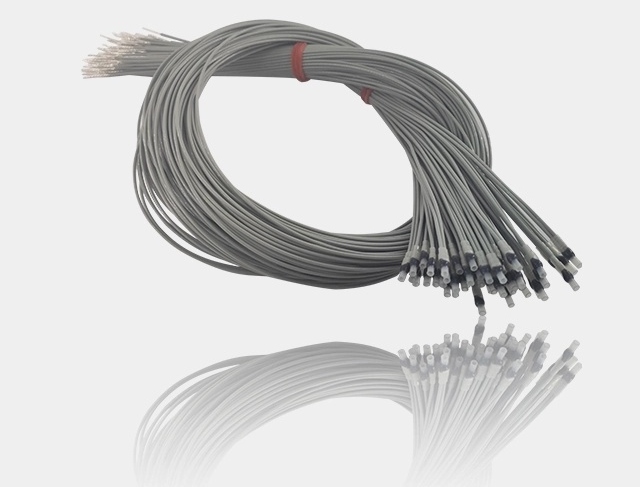

PTC Thermistor MZ6 Sensor for Motor Protection detail
  • The chip size is small (size: 1.8*0.6MM), fast response, complete specifications, stable performance and high reliability for long-term use.
  • High Precision: when the temperature reaches the set temperature, jump quickly to achieve the purpose of protecting the motor.
  • Multiple Connections: Single connection or series connection is optional, wire length can also be customized.
  • Color Identification: Can be matched according to the color of the two wires identify the control temperature Tk of the product.

Electrical specifications

Electrical connection schematic
Schematic diagram of electrical connection method

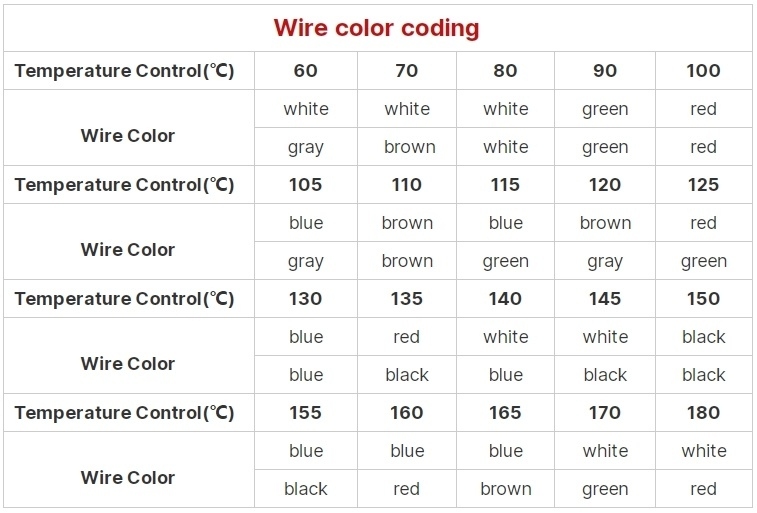

Wire color coding chart
Wire color coding by response temperature
Sensor typeMZ6 PTC thermistor
ResponsePositive temperature coefficient
ConnectionSingle or series; wire length customizable
Chip size1.8 x 0.6 mm (typical)

Applications

  • Water dispenser, Air conditioning.
  • Refrigerator, dishwasher.
  • Disinfection cabinet.
  • Incubation incubator.

Dimensions

  • Chip size typically 1.8 × 0.6 mm
  • Single or series strand options
  • Wire length customizable
