Motor Thermistor MZ6 — 180 °C Response, Positive Sensing

PTC

Motor Thermistor MZ6 — 180 °C Response, Positive Sensing

PTC motor thermistor with 180 °C response temperature for winding protection using a positive temperature coefficient element.

March 04, 2024

Request quote Back to catalogue

Technical datasheet

Features, electrical specifications, applications and dimensions for this sensor.

Product features

Motor Thermistor MZ6 — 180 °C Response, Positive Sensing detail

MZ6 PTC motor thermistor with 180 °C response temperature.
Positive temperature coefficient — resistance rises sharply at Tk.
Compact chip for embedding in motor windings.
Single or series connection; wire length customizable.

Electrical specifications

Sensor type	MZ6 PTC motor thermistor
Response temperature	180 °C
Response	Positive temperature coefficient
Application	Motor winding protection

Applications

Electric motor thermal protection
Industrial drive windings
Compressors and pumps
Heating-product thermal cutback sensing

Dimensions

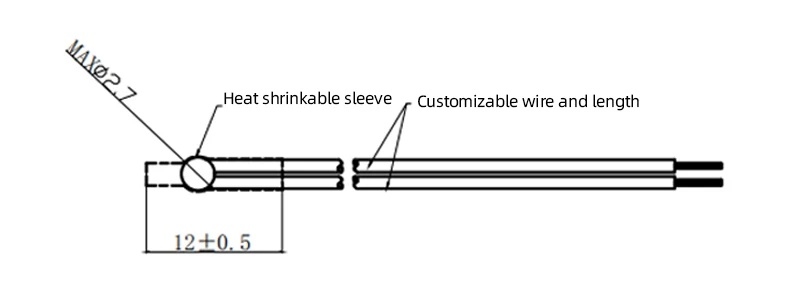

Product dimensions — Dimension drawing

Chip size typically 1.8 × 0.6 mm
Cable length customizable
Single or multi-sensor strand options
