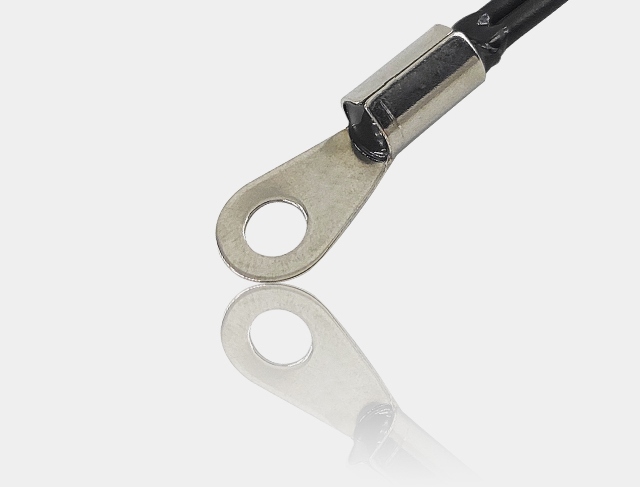

Ring Lug NTC Temperature Sensor — Flat Surface Mounting
NTC

Ring Lug NTC Temperature Sensor — Flat Surface Mounting

High-reliability ring-lug NTC for flat surface mounting. Available for ODM and OEM household electrical appliance projects.

February 29, 2024

Request quote Back to catalogue

Technical datasheet

Features, electrical specifications, applications and dimensions for this sensor.

Product features

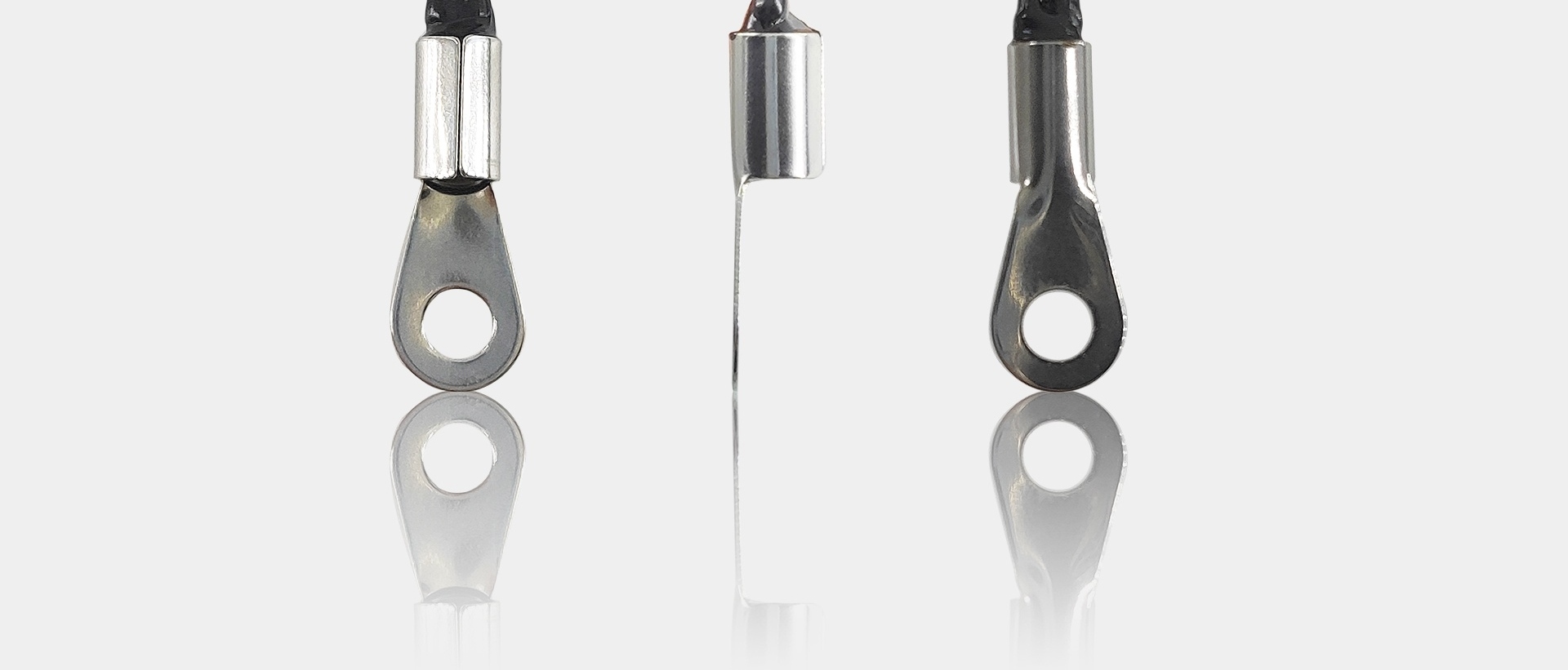

Ring Lug NTC Temperature Sensor — Flat Surface Mounting detail
  • Ring-lug termination for flat surface / screw mounting.
  • High reliability NTC sensing for household electrical appliances.
  • ODM / OEM customization of lug size, wire, and resistance.
  • Secure mechanical contact for stable readings.

Electrical specifications

Sensor typeNTC ring-lug temperature sensor
MountingFlat surface / screw ring lug
CustomizationLug size, wire, resistance
UseHousehold electrical appliances

Applications

  • Household electrical appliances
  • Motors and heaters with screw terminals
  • Surface temperature monitoring
  • OEM equipment builds

Dimensions

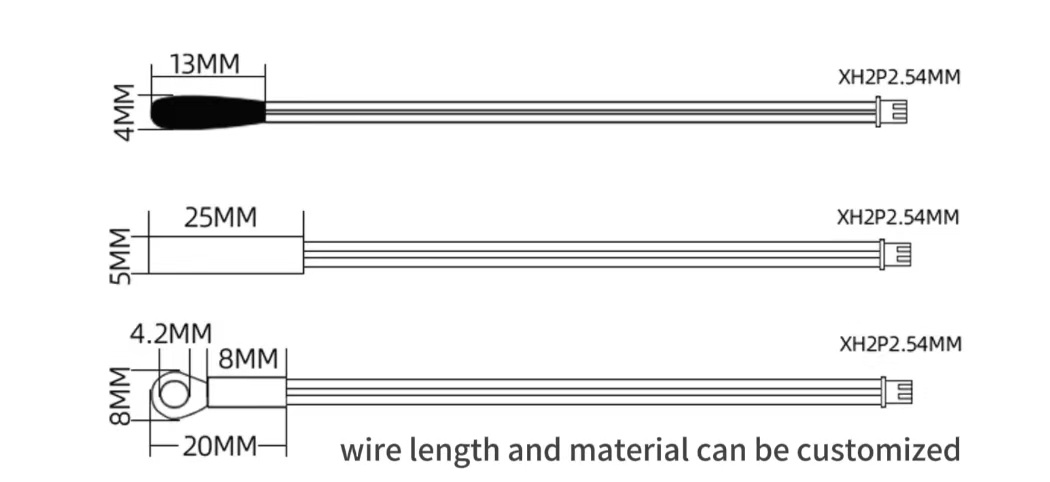

Product dimensions
Dimension drawing
  • Ring lug ID sized to mounting screw
  • Cable length customizable
