MF52B Fast Response NTC Thermistor 3950 10k
NTC

MF52B Fast Response NTC Thermistor 3950 10k

High-precision MF52B NTC thermistor (3950, 10k) with fast thermal response for appliance and HVAC temperature control.

July 12, 2024

Request quote Back to catalogue

Technical datasheet

Features, electrical specifications, applications and dimensions for this sensor.

Product features

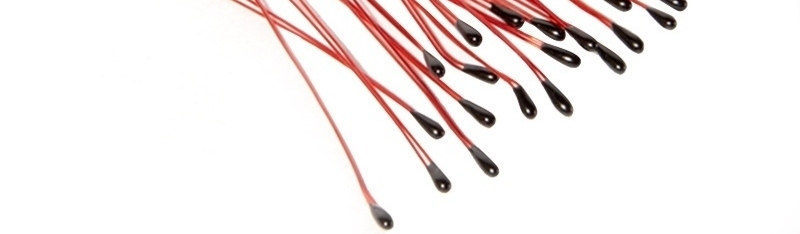

MF52B Fast Response NTC Thermistor 3950 10k detail
  • Small chip size with fast thermal response for precise temperature sensing.
  • Stable long-term performance with complete resistance / B-value options (e.g. 10k, B3950).
  • Enamelled copper leads for compact appliance and PCB mounting.
  • Resistance and wire length can be customized to the application.

Electrical specifications

Sensor typeNTC thermistor (MF52B)
Nominal resistance10 kΩ (typical; other values available)
B value3950 K (typical)
LeadsEnamelled copper wire

Applications

  • Intelligent rice cooker, microwave oven
  • Refrigerator, color printer
  • Digital thermometer
  • Incubation incubator

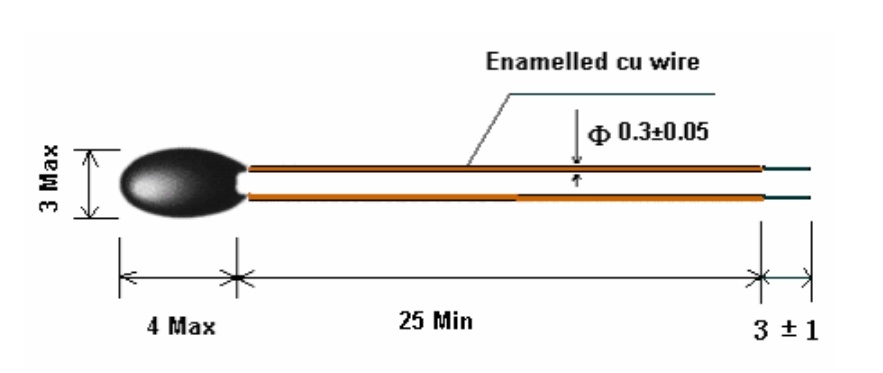

Dimensions

Product dimensions
Dimension drawing
  • Sensing bead: compact MF52-style epoxy tip
  • Lead diameter: Φ0.3 ± 0.05 mm (typical)
  • Lead length: customizable (e.g. 13 cm to 2 m)
